Electric Motor Shop
Universal Flexible Shaft Coupling
Universal Flexible Shaft Coupling
Regular price
£22.09 GBP
Regular price
Sale price
£22.09 GBP
Taxes included.
Quantity
Couldn't load pickup availability

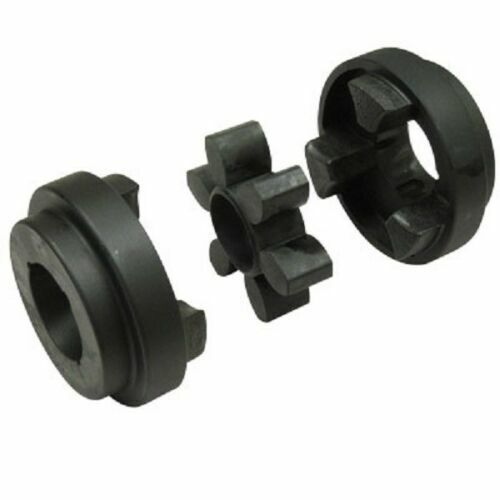

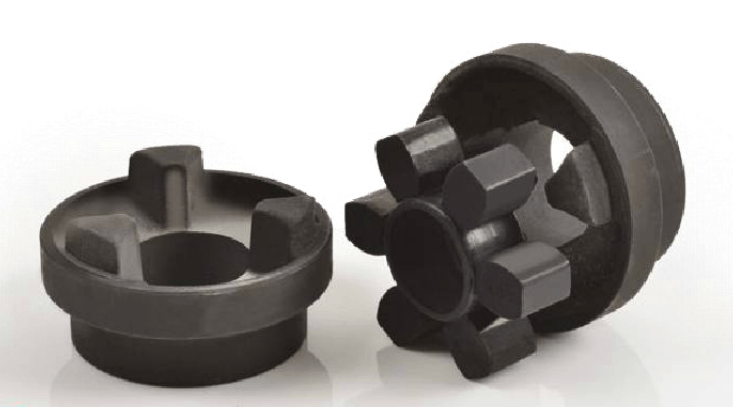

HRC type shaft couplings complete with taper bushes to join two shafts with no machining required. Each coupling comprises of 2 cast iron hubs, rubber element and two taper bushes, which come with a standard range of metric and imperial bore sizes to fit directly onto your shafts. The taper bushes also have a standard keyway.
The hubs can be supplied so the bushes fit from the coupling inside (FF) or from the outside (HH) or one of each type of hub (HF). Unless advised otherwise, we will automatically supply the FF type as this constitutes over 95% of our supply.
Maximum bore sizes available for each coupling size...
HRC70 - 25mm/1"
HRC90 - 28mm/1 1/8"
HRC110 - 42mm/1 5/8"
HRC130 - 42mm/1 5/8"
HRC150 - 50mm/2"
HRC180 - 65mm/2 1/2"
HRC230 - 75mm/3"
HRC280 - 100mm/4"
Please specify the 2 shaft sizes required when you place an order. Our contact details are at the bottom of this listing and on our eBay shop front page. Please message or call us if you require drawings, power ratings, torque figures etc.
Our price is for the complete 3 part coupling, 2 x taper bushes, UK carriage and VAT. A VAT invoice will be supplied with all orders.
For example, typically you might require in our coding... 1 x HRC90FF/28/3/4"
We supply a comprehensive range of electric motors, geared motors, inverters, couplings, chain & sprockets, belts & pulleys, motor bases and much more.
