Hog Roast Motor

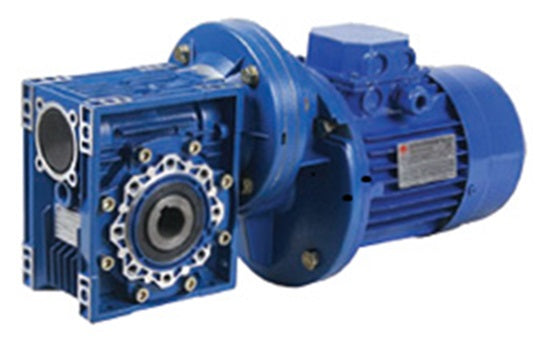

Thank you for your interest in our hogroast drive. The gearbox has a hollow 18mm diameter output shaft with keyway, so you then have 2 alternatives. You can have a steel shaft made the total length you want, say 25mm diameter, with one end machined down to 18mm x 75mm length with a standard 6mm keyway along its length (75mm). This will then go straight into the gearbox hollow output shaft giving you a fixed speed of about 5.5 rpm on the shaft.

Alternatively, you can fit the output shaft that I supply with the unit which will then give you a solid shaft to fix a sprocket onto. This will allow you to fit the drive unit lower down in the hogroast frame which keeps it cooler. I supply a 3:1 ratio chain drive which will reduce the shaft speed to about 1.8rpm therefore allowing you to accommodate a larger animal because of the addition torque generated by the lower speed (3 times more powerful). I sell this chain drive for £45 inc VAT. You would get 2 sprockets, 2 taper lock bushes and 1 metre of chain with connecting link.

This is a complex item so please feel free to contact me to discuss further. My contact details are in my shop home page.

Regards

Tony

VAT included and carriage included, to most UK addresses. For Highlands and all islands, please request shipping cost before ordering.
