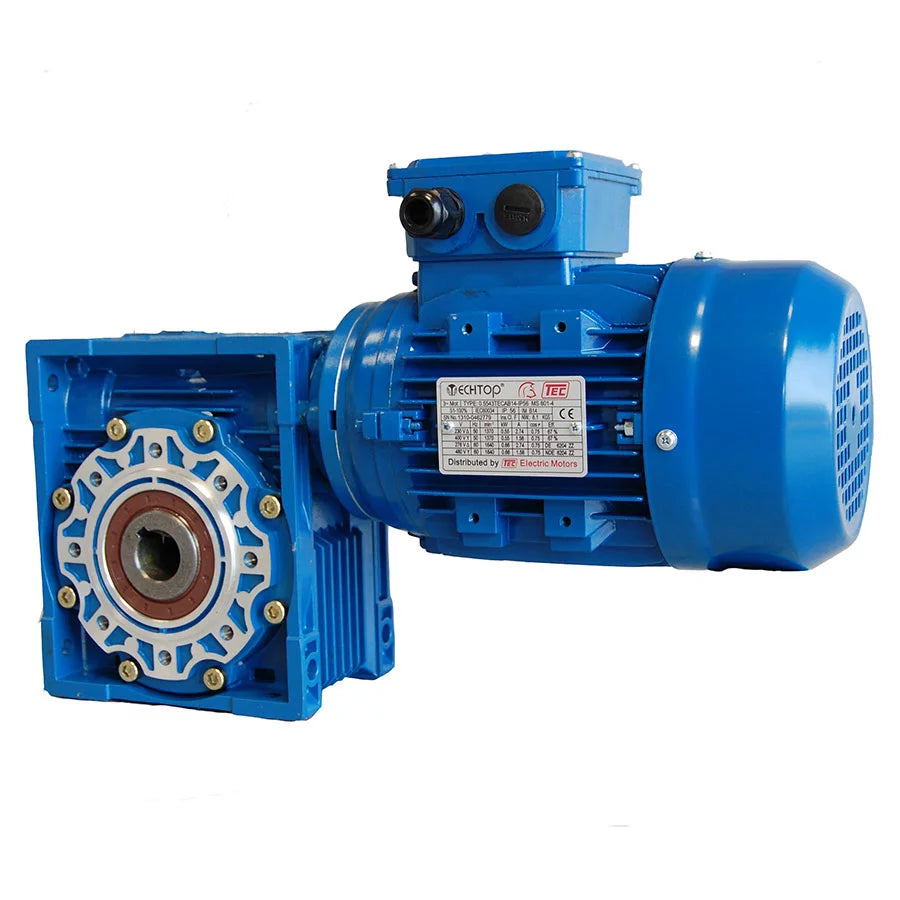

Geared Motor - Worm Geared Motor, Single or Three Phase Motor

This listing is for a geared motor (motorised gearbox) and the price shown is a 'starting from' price and is for the smallest gearbox, with the smallest motor fitted. When I know your exact requirements, I can let you have the correct price for that combination along with a drawing. I can then create a specific listing for you.

Output Torque from 26 - 1596 Nm

Output speeds from 14 - 373 rpm (N.B. slower speeds can be achieved by using 2 gearboxes together)

Hollow output shaft diameters available 11mm, 14mm, 18mm, 25mm, 28mm, 35mm, 42mm, 45mm. (some other bores are available)

Input motor power from 0.06kw (0.08hp) - 7.5kw (10hp)

Single phase (230v) up to 4kw or 3 phase (230/400v) up to 7.5kw

Sealed units, so any mounting position is fine

- single or double solid output shafts

- various output flanges

 -torque arm for use when just installing the gearbox shaft mounted only



Prices include VAT and UK mainland carriage. A VAT invoice will be supplied with each purchase.

Notes

• Single phase motors over 1.5kw (2HP) would need a wall mounted commercial single phase socket as they would require more than 13 amps.
• I can supply mechanical or electronic speed controllers for any of our motors & geared motors if you need to vary the speed.
• I can supply a comprehensive range of industrial power transmission products including motors, gearboxes, chain & belt drives,  bearings.
