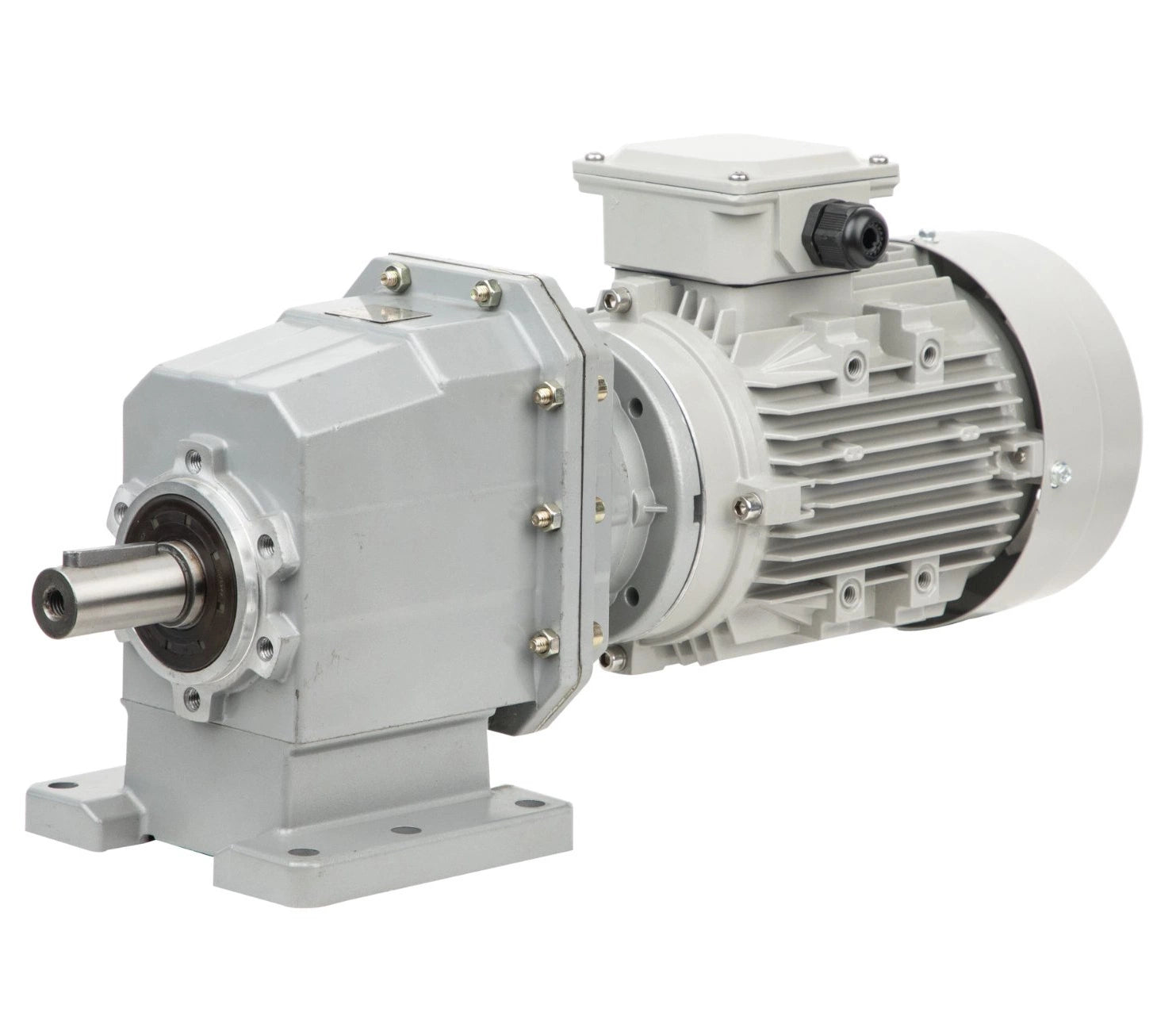

Geared Motor - Helical Inline Geared Motor, single or three phase

This listing is for a geared motor (motorised gearbox) and the price shown is a 'starting from' price and is for the smallest gearbox, with the smallest motor fitted. When I know your exact requirements, I can let you have the correct price for that combination along with a drawing. I can then create a specific listing for you.

Output Torque from 70 - 500 Nm

Output speeds from 24 - 383 rpm

Output shaft diameters available 20mm, 25mm, 30mm, 35mm

Input motor power from 0.12kw (0.16hp) - 4kw (5.5hp)

Single phase (230v) or 3 phase (230/400v)

Sealed units, so any mounting position is fine

Prices include VAT and UK mainland carriage. A VAT invoice will be supplied with each purchase.

Foot mounting or flange mounting available (N.B. there are 3 diameter options on output flange size)

Notes

• Single phase motors over 1.5kw (2HP) would need a wall mounted commercial single phase socket as they would require more than 13 amps.
• I can supply mechanical or electronic speed controllers for any of our motors & geared motors if you need to vary the speed.
• I can supply a comprehensive range of industrial power transmission products including motors, gearboxes, chain & belt drives,  bearings.
