Electric Motor - Single Phase single capacitor

Single phase 230v electric motors - single capacitor (perm cap)

4 pole (1425rpm approx) & 2 pole (2850rpm approx) listed here,  some 6 pole (975rpm approx) are available on request.

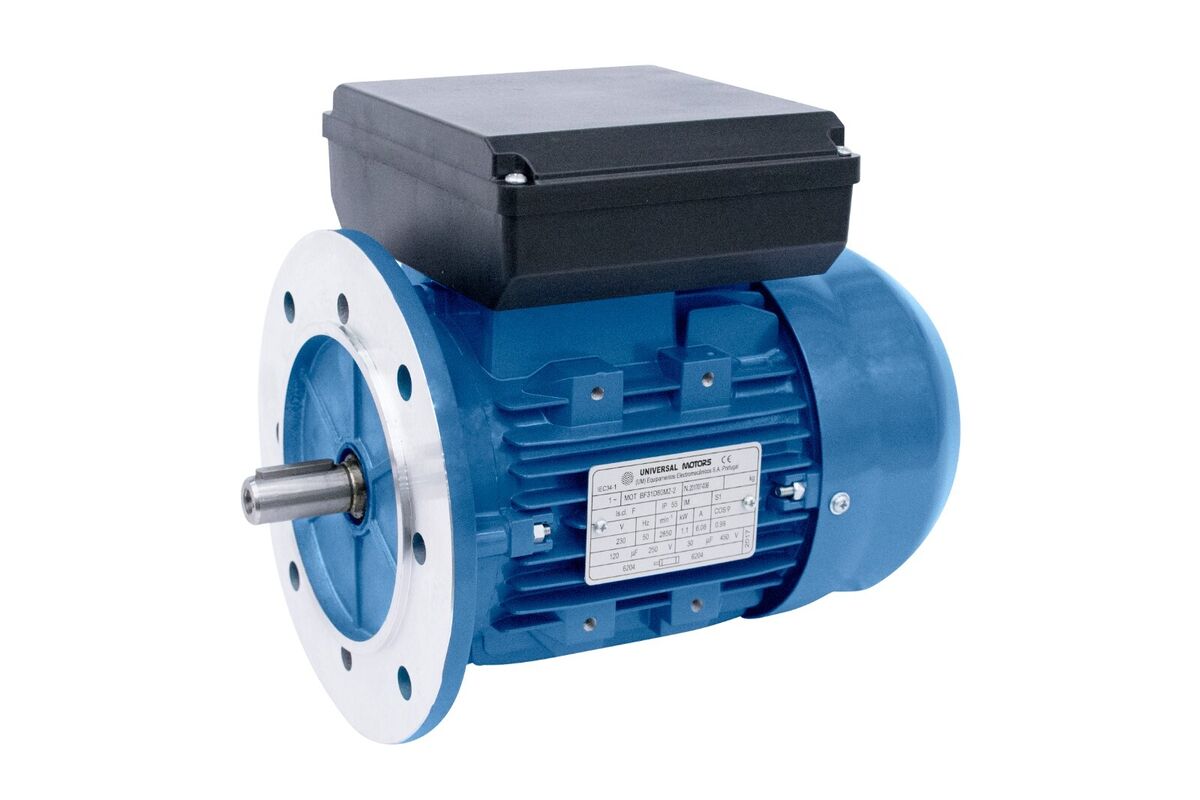

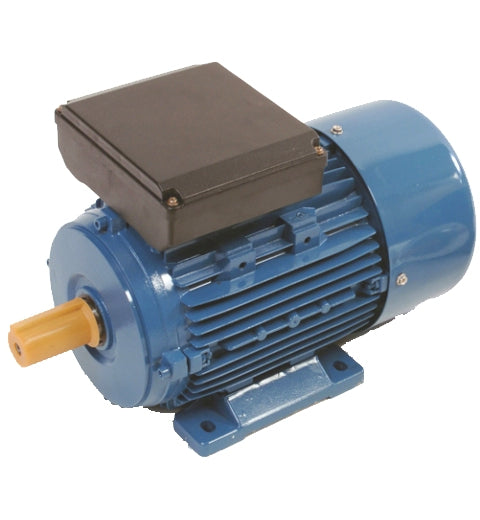

Mounting types available – foot mounted (B3), flange mounted (B5) or face mounted (B14).

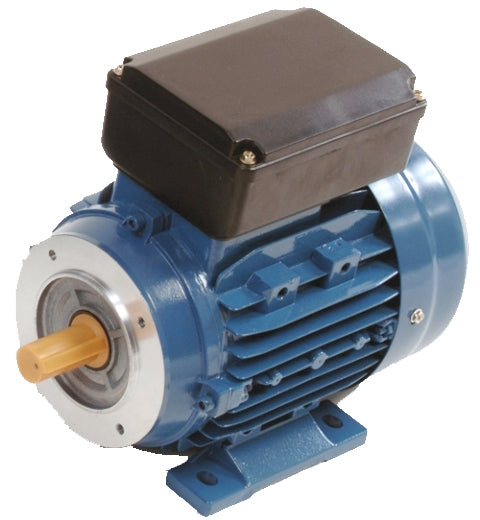

.. if you need a motor with two types of mounting, please contact me e.g. foot & flange (B35) or foot & face mounting (B34)

All prices are including UK mainland carriage and VAT. A VAT invoice will be posted out with each order.

We supply electric motors, gearboxes, geared motors, inverters, chain drives, belt drives, couplings, bearings etc.

For dimensions please contact us on 07940 872475 by phone, text or WhatsApp.

I will add a dimension table to this description soon.

 2 pole 2850rpm

56 frame (9mm shaft)           0.12kw

63 frame (11mm shaft)         0.18kw, 0.25kw

71 frame (14mm shaft)         0.37kw, 0.55kw

80 frame (19mm shaft)         0.75kw, 1.1kw

90 frame (24mm shaft)         1.5kw, 2.2kw

100 frame (28mm shaft)        3kw

112 frame (28mm shaft)        4kw

4 pole 1425rpm

63 frame (11mm shaft)         0.18kw

71 frame (14mm shaft)         0.25kw, 0.37kw

80 frame (19mm shaft)         0.55kw, 0.75kw

90 frame (24mm shaft)         1.1kw, 1.5kw

100 frame (28mm shaft)        2.2kw, 3kw

112 frame (28mm shaft)        4kw
