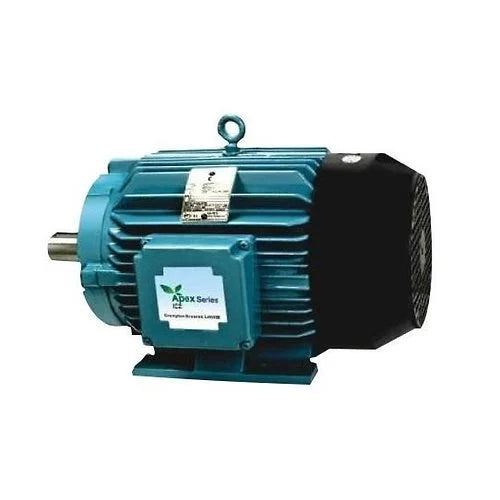

CROMPTON greaves Electric Motor - Three Phase

CROMPTON greaves electric motors

Three phase 230/400v and 400/690v electric motors -

Up to and including 3kw normally 230/400v dual wound......4kw and above usually 400/690v dual wound. We can usually cater for requirements outside the standard range.

Motors stocked up to 350kw but only listed here up to 22kw. Contact me for anything bigger.

4 pole (1425rpm approx) & 2 pole (2850rpm approx) listed here, 6 pole (975rpm approx) and 8 pole (750rpm approx), just message or ring me.

All motors suitable for inverter drive (see my separate listing in my eBay shop). Up to 4kw can be driven by either a single phase or 3 phase input inverter. All sizes can be driven by a 3 phase input inverter.

0.18kw - 7.5kw are aluminium    11kw and above are cast iron

Crompton Greaves are a premium quality motor.

Braked motors, forced vent fan cooled motors, contact me for quote.

Mounting types available – foot mounted (B3), flange mounted (B5) or face mounted (B14).

Please note that the flange and face mounted motor pictures show feet as well. These would not be included unless you specify. Please contact me if you require 2 types of mounting, e.g. foot & flange (B35) or foot & face mounting (B34)

All prices are including UK mainland carriage and VAT. A VAT invoice will be posted out with each order.

We supply motors, gearboxes, geared motors, inverters, chain drives, belt drives, couplings, bearings etc.

For dimensions please contact us on 07940 872475 by phone, text or WhatsApp.

I will add a dimension table to this description soon.

 2 pole 2850rpm

56 frame (9mm shaft)           0.12kw

63 frame (11mm shaft)         0.18kw, 0.25kw

71 frame (14mm shaft)         0.37kw, 0.55kw

80 frame (19mm shaft)         0.75kw, 1.1kw

90 frame (24mm shaft)         1.5kw, 2.2kw

100 frame (28mm shaft)        3kw

112 frame (28mm shaft)        4kw

132 frame (38mm shaft)        5.5kw, 7.5kw

160 frame (42mm shaft)        11kw, 15kw, 18.5kw

180 frame (48mm shaft)        22kw

4 pole 1425rpm

63 frame (11mm shaft)         0.18kw

71 frame (14mm shaft)         0.25kw, 0.37kw

80 frame (19mm shaft)         0.55kw, 0.75kw

90 frame (24mm shaft)         1.1kw, 1.5kw

100 frame (28mm shaft)        2.2kw, 3kw

112 frame (28mm shaft)        4kw

132 frame (38mm shaft)        5.5kw, 7.5kw

160 frame (42mm shaft)        11kw, 15kw

180 frame (48mm shaft)        18.5, 22kw
