Electric Motor - Single Phase Twin Capacitor
Electric Motor - Single Phase Twin Capacitor - Foot Mount (B3) / 2 pole (2800rpm) / 0.18kw is backordered and will ship as soon as it is back in stock.
Why Choose Electric Motor Shop?
Electric Motor - Single Phase Twin Capacitor
Electric Motor - Single Phase Twin Capacitor - Foot Mount (B3) / 2 pole (2800rpm) / 0.18kw is backordered and will ship as soon as it is back in stock.
Single phase 230v electric motors - Twin Capacitor (cap / cap)
4 pole (1425rpm approx) & 2 pole (2850rpm approx) listed here, some 6 pole (975rpm approx) are available on request.

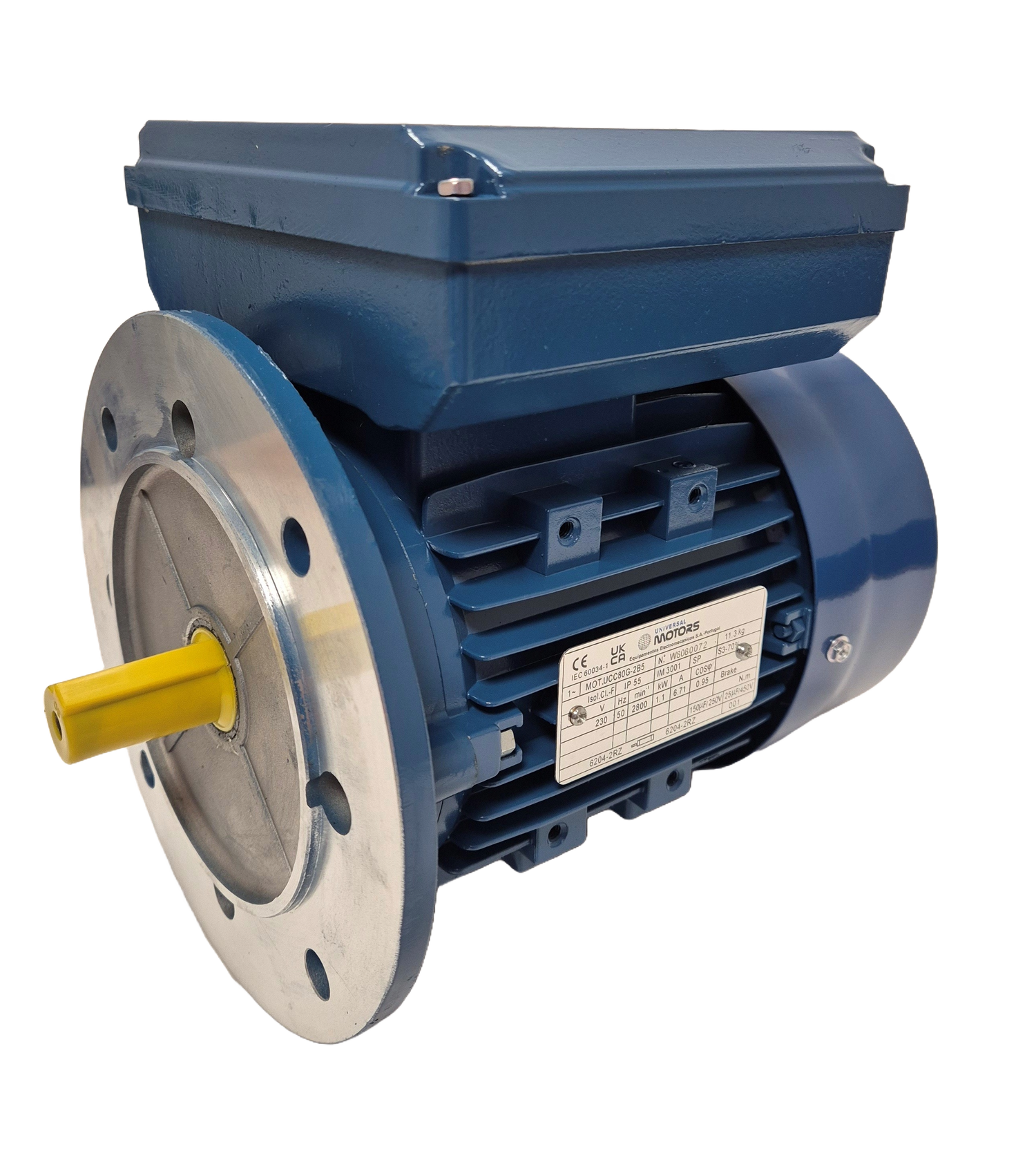

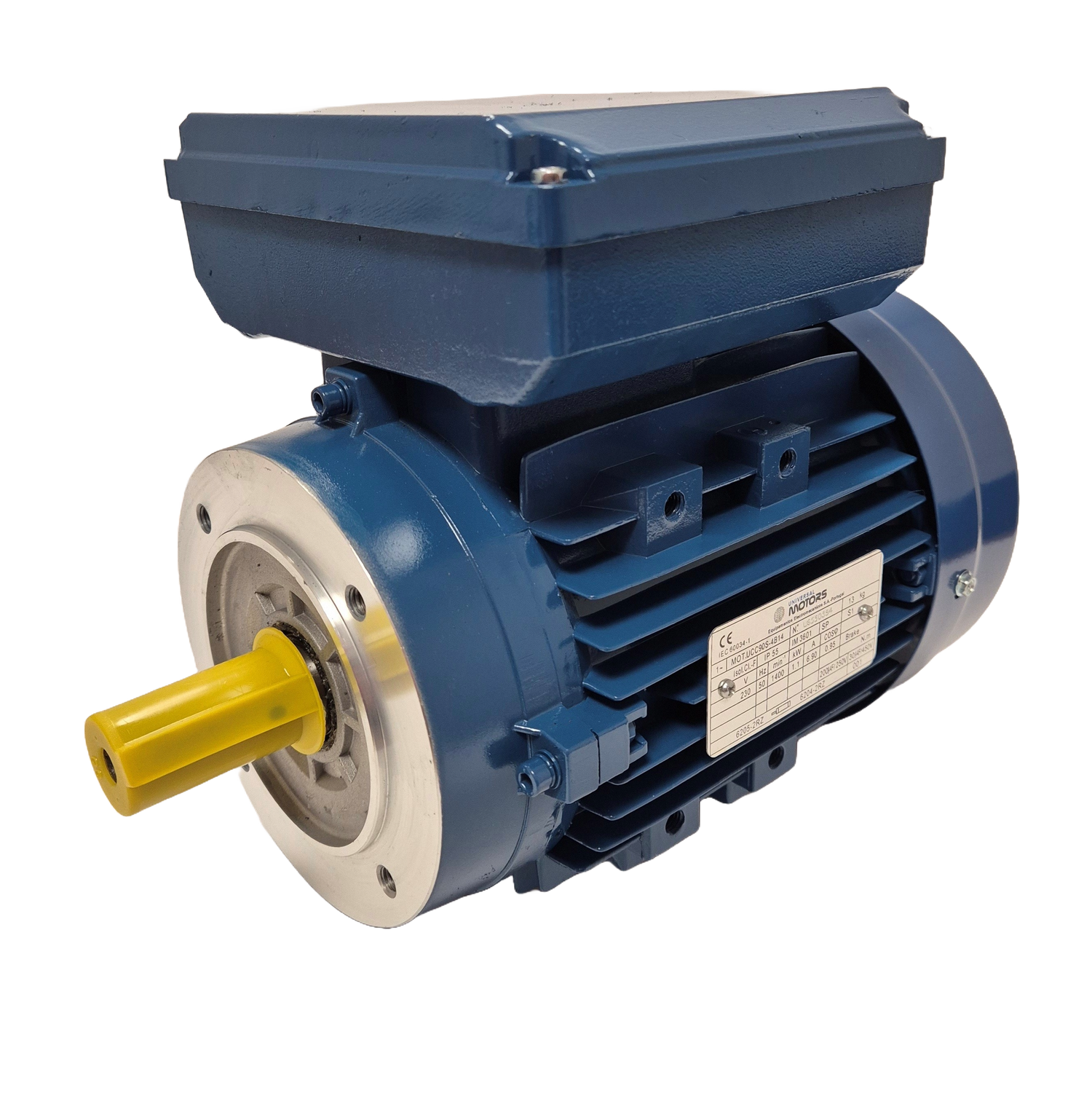

Mounting types available – foot mounted (B3), flange mounted (B5) or face mounted (B14).
.. if you need a motor with two types of mounting, please contact me e.g. foot & flange (B35) or foot & face mounting (B34)
All prices are including UK mainland carriage and VAT. A VAT invoice will be posted out with each order.
We supply electric motors, gearboxes, geared motors, inverters, chain drives, belt drives, couplings, bearings etc.
For dimensions please contact us on 07940 872475 by phone, text or WhatsApp.
-
Power Output
-
Phase
-
Voltage
-
RPM
-
Pole Count
-
Mounting Type
-
Shaft Diameter
| Speed / Poles | Frame Size | Shaft Diameter | Power (kW) |
|---|---|---|---|
| 2 Pole (2850rpm) | 56 Frame | 9mm | 0.12kw |
| 63 Frame | 11mm | 0.18kw, 0.25kw | |
| 71 Frame | 14mm | 0.37kw, 0.55kw | |
| 80 Frame | 19mm | 0.75kw, 1.1kw | |
| 90 Frame | 24mm | 1.5kw, 2.2kw | |
| 100 Frame | 28mm | 3kw | |
| 112 Frame | 28mm | 4kw | |
| 4 Pole (1425rpm) | 63 Frame | 11mm | 0.18kw |
| 71 Frame | 14mm | 0.25kw, 0.37kw | |
| 80 Frame | 19mm | 0.55kw, 0.75kw | |
| 90 Frame | 24mm | 1.1kw, 1.5kw | |
| 100 Frame | 28mm | 2.2kw, 3kw | |
| 112 Frame | 28mm | 4kw |
